Airchime K5H

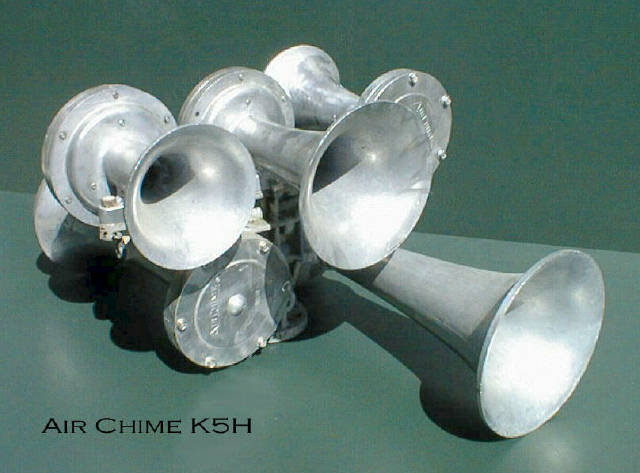

The picture illustrates a common arrangement of the horn bells, with the #2 and #4 bells reversed. In this configuration, the horn is designated a K5HR24. The "H" indicates the use of a high-profile manifold. The manifold places three horn bells over two, making the horn look somewhat top-heavy compared to the two-over-three configuration used on the M5 and P5. The K5H horn bells can also be mounted on a low-profile "L" manifold to give a K5L (see the K5LA for a picture of an "L" manifold). The sound is the same.

Side view of the K5HR24.

Front and rear views of an all-bells-forward K5H, courtesy Brent Lee. The K-series horns were introduced in 1954 as low-maintenance alternatives to the M-series, with a somewhat more pleasant tone than the brassy P-series. The K's were sold exclusively in Canada until the mid-1970's, when the K5's chord was modified to produce the K5LA for Amtrak. The optional "L" manifold was introduced at the same time, and horns with the older, high-profile manifold were redesignated K5H.

The K5H and K5L are used primarily by BC Rail in Canada. They were extremely rare on American railroads until the mid-1980's, when railroads such as CSX, Norfolk Southern, Southern Pacific, Chicago & North Western, and New York Susquehanna & Western received the K5H on a few orders of GE locomotives. The horns on the SP and CNW GE's have largely been replaced with three-chime horns. A few K5L horns have shown up on Amtrak locomotives.

Original factory tuning was: D# minor 6th (D#,F#,A#,C,D#).
Later horns tend to sound more of a half major/half minor chord.

Although the K5H and K5L are not common today on US railroads, they are still in common use in Canada and can still be purchased from Airchime.
